1 of 27

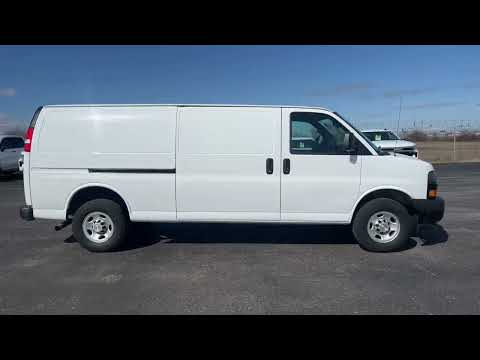

2023 Chevrolet Express Cargo Van
Vehicle Details
Body Style
Commercial
Engine
4.3L 6Cyl
Transmission
Automatic
Drivetrain
RWD
Stock #
LC00114F
Packages & Options
Standard Equipment
Technical Specifications
-
AM/FM Stereo
-
Auxiliary Audio Input
-
MP3 Player
-
WiFi Hotspot
-
Steel Wheels
-
Conventional Spare Tire
-
Tires - Front All-Season
-
Tires - Rear All-Season
-
Headlamps, dual halogen composite
-
Heated Mirrors
-
Power Mirror(s)
-
Intermittent Wipers
-
Bucket Seats
-
Vinyl Seats
-
Console, engine cover with open storage bin
-
Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
-
Instrumentation, analog with speedometer, odometer with trip odometer, fuel level, voltmeter, engine temperature and oil pressure
-
Oil life monitor
-
Warning tones, headlamp on and key-in-ignition
-
Tire Pressure Monitor
-
Trip Computer
-
Power Door Locks
-
Power Windows
-
Transmission Overdrive Switch
-
Immobilizer
-
A/C
-
Defogger, side windows
-
Cup holders, 3 on the engine console cover
-
Power Outlet
-
Trim panels, hinged rear side doors and hinged rear doors (Not available with (Y3H) Paratransit Package.)
-
Back-Up Camera
-
Visors, driver and front passenger, vinyl
-
Assist handles, driver and right-front passenger
-
Lighting, interior with 4 dome lights 1 overhead and 3 LED's on cross members in cargo area, includes defeat switch and door handle-activated switches
-
Gasoline Fuel
-
V6 Cylinder Engine
-
8-Speed A/T
-
A/T
-
Transmission w/Dual Shift Mode
-
GVWR, 8600 lbs. (3901 kg) (Reference the Engine/Axle page for availability.)
-
Cold Climate Package includes (K05) engine block heater
-
Engine block heater
-
Rear Wheel Drive
-
Cooling, external engine oil cooler
-
Frame, full-length box ladder-type
-
Suspension, front independent with coil springs and stabilizer bar
-
Suspension, rear hypoid drive axle with multi-leaf springs
-
Power Steering
-
4-Wheel Disc Brakes
-
ABS
-
Power Door Locks
-
Power Windows
-
Brake/transmission shift interlock, for automatic transmissions
-
Stability Control
-
Traction Control
-
Door beams, steel-side
-
Daytime Running Lights
-
Driver Air Bag
-
Passenger Air Bag
-
Passenger Air Bag On/Off Switch
-
Front Head Air Bag
-
Front Side Air Bag
-
Requires Subscription
-
Telematics
-
Back-Up Camera
-
Tire Pressure Monitor
No matches were found.
-
Vehicle NameChevrolet Express Cargo Van
-
Body StyleCargo Van
-
Body CodeZW9
-
DrivetrainRear Wheel Drive
-
Trans Order CodeM5U
-
Trans Type8
-
Trans Description Cont.Automatic
-
First Gear Ratio (:1)4.56
-
Second Gear Ratio (:1)2.97
-
Third Gear Ratio (:1)2.08
-
Fourth Gear Ratio (:1)1.69
-
Fifth Gear Ratio (:1)1.27
-
Sixth Gear Ratio (:1)1.00
-
Seventh Gear Ratio (:1)0.85
-
Eighth Gear Ratio (:1)0.65
-
Reverse Ratio (:1)3.82
-
Passenger Capacity2
-
Front Head Room (in)40.85
-
Front Leg Room (in)41.35
-
Front Shoulder Room (in)68.85
-
Front Hip Room (in)65.47
-
Gross Axle Wt Rating - Front (lbs)4300
-
Gross Axle Wt Rating - Rear (lbs)5360
-
Curb Weight - Front (lbs)2971
-
Curb Weight - Rear (lbs)2354
-
Gross Vehicle Weight Rating Cap (lbs)8600
-
Gross Combined Wt Rating (lbs)15000
-
Dead Weight Hitch - Max Trailer Wt. (lbs)5000
-
Dead Weight Hitch - Max Tongue Wt. (lbs)500
-
Wt Distributing Hitch - Max Trailer Wt. (lbs)7100
-
Wt Distributing Hitch - Max Tongue Wt. (lbs)710
-
Maximum Trailering Capacity (lbs)10000
-
Engine Order CodeLV1
-
Engine TypeGas V6
-
Displacement4.3L
-
Fuel SystemDirect Injection
-
SAE Net Horsepower @ RPM276 @ 5200
-
SAE Net Torque @ RPM298 @ 3900
-
Engine Oil CoolerYes
-
Cold Cranking Amps @ 0° F (Primary)600
-
Maximum Alternator Capacity (amps)105
-
Total Cooling System Capacity (qts)13.6
-
Frame TypeLadder
-
Suspension Type - FrontCoil Spring
-
Suspension Type - RearHypoid Multi-Leaf
-
Spring Capacity - Front (lbs)4300
-
Spring Capacity - Rear (lbs)5360
-
Axle Type - FrontIndependent
-
Axle Type - RearSemi-Floating
-
Axle Capacity - Front (lbs)4300
-
Axle Capacity - Rear (lbs)5360
-
Axle Ratio (:1) - Rear3.42
-
Shock Absorber Diameter - Front (mm)N/A
-
Shock Absorber Diameter - Rear (mm)N/A
-
Stabilizer Bar Diameter - Front (in)1.38
-
Front Tire Order CodeXLP
-
Rear Tire Order CodeYLP
-
Spare Tire Order CodeZLP
-
Front Tire SizeLT245/75R16E
-
Rear Tire SizeLT245/75R16E
-
Spare Tire SizeLT245/75R16E
-
Front Tire Capacity (lbs)2190
-
Rear Tire Capacity (lbs)2680
-
Front Wheel Size (in)16 x 6.5
-
Rear Wheel Size (in)16 x 6.5
-
Spare Wheel Size (in)16 x 6.5
-
Front Wheel MaterialSteel
-
Rear Wheel MaterialSteel
-
Spare Wheel MaterialSteel
-
Steering TypePwr
-
Steering Ratio (:1), On Centre17.2
-
Steering Ratio (:1), At Lock17.2
-
Turning Diameter - Curb to Curb (ft)54.5
-
Turning Diameter - Wall to Wall (ft)N/A
-
Brake TypePwr
-
Brake ABS System4-Wheel
-
Disc - FrontYes
-
Disc - RearYes
-
Front Brake Rotor Diam x Thickness (in)12.8 x 1.5
-
Rear Brake Rotor Diam x Thickness (in)13.0 x 1.1
-
Fuel Tank Capacity, Approx (L)117
-
Fuel Tank LocationMid-frame
-
Wheelbase (in)155.15
-
Length, Overall (in)244.05
-
Width, Max w/o mirrors (in)79.25
-
Height, Overall (in)84.25
-
Overhang, Front (in)39.7
-
Ground to Top of Load Floor (in)29.75
-
Ground Clearance, Front (in)9.65
-
Ground Clearance, Rear (in)8.6
-
Rear Door Opening Height (in)47.95
-
Rear Door Opening Width (in)53.42
-
Side Door Opening Width (in)45.29
-
Step Up Height - Front (in)27.44
-
Step Up Height - Side (in)27.9
-
Rear Door TypeDual Swing-out
-
Side Door TypeSliding
-
Cargo Area Length @ Floor to Console (in)173.65
-
Cargo Area Length @ Floor to Seat 1 (in)146.75
-
Cargo Box Width @ Wheelhousings (in)52.47
-
Cargo Box (Area) Height (in)55.08
-
Cargo Volume (ft³)283.6
